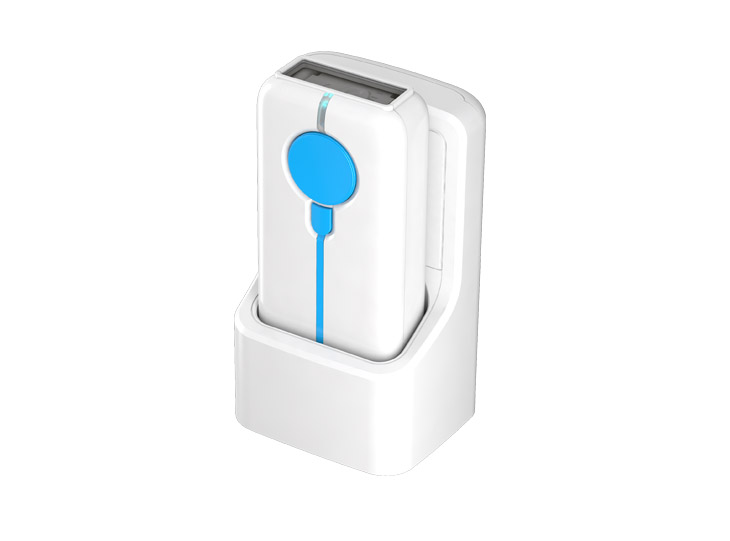

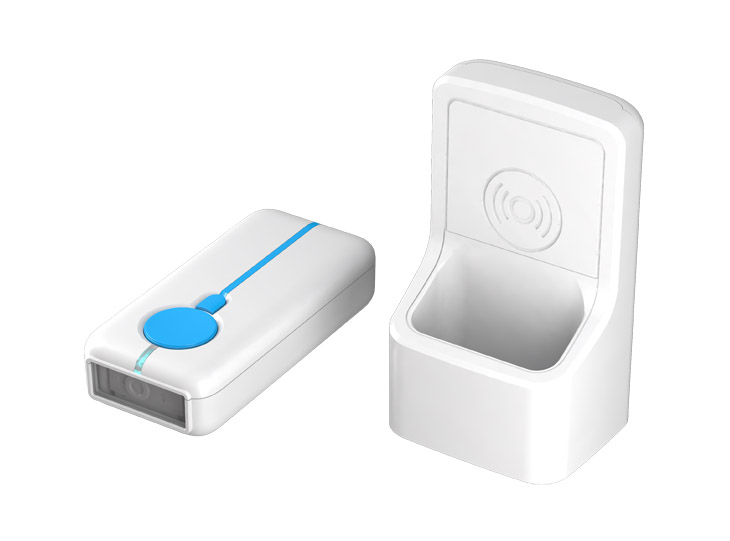

CCD Bluetooth Portable Barcode Scanner BT-680C

Warehouse: CY01

Interface

 MINI USB

Barcodes supported

 All UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII, Code32 / Italian Pharmacy, Code 128, CODABAR/NW7, Interleave 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI/PLESSEY, Telepen, Code 93, Code 11, China Postage, GS1 DataBar

RF standard

BT 4.0

Working Distance

90M (Open environment)

Optical sensor

2500 pixels

Light Source

Red LED (660nm)

Resolution

3 mil

Depth of Field

38 – 800mm

Scan rate

300 scans/sec

PCS

45%

Operating temperature

0 °C to 40 °C / 32 °F to 104 °F

Storage temperature

-40 °C to 70 °C / -40 °F to 158 °F

Operatiing humidity

10% ~95% RH non-condensing at 122 °F/ 50 °C

Storage humidity

10% ~85% RH non-condensing at 158 °F/ 70 °C

Shock resistance

1.5m drops

Weight

65g

Dimensions

89mm (L) x 43mm (W) x21mm (H)

Housing Material

ABS plastic

Battery Type

Li-ion

Battery Capacity

1150mAh

Charge

By USB power retrieving cable

Time Of Charge

About 4 hours
BT-680C

Χαρακτηριστικά

Barcode Scanner Connectivity
Bluetooth
Barcode Scanner Type
Cordless
Barcode Scanner Sensor
CCD
