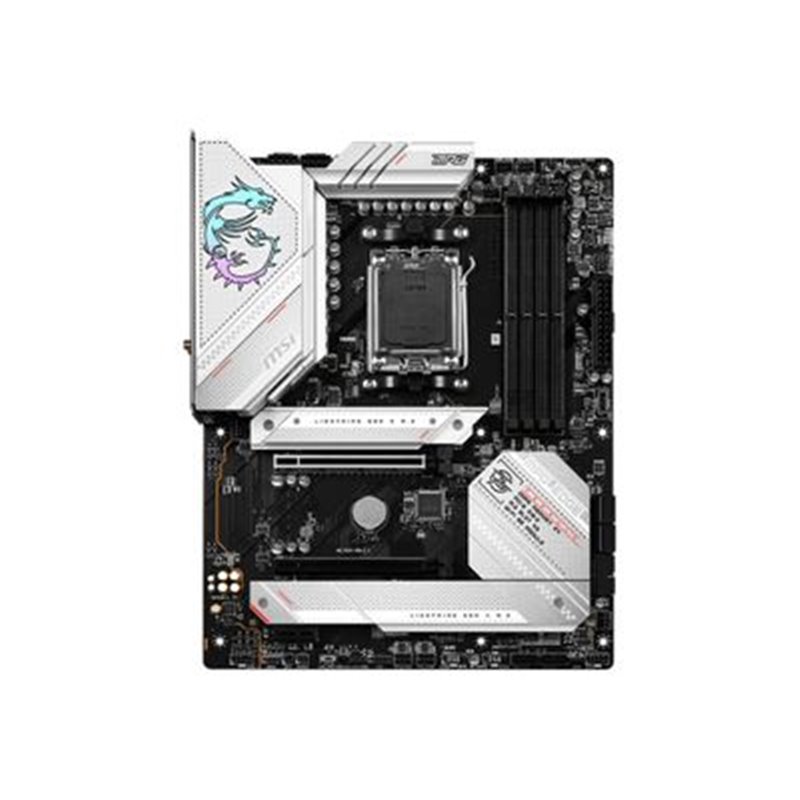

MSI MPG B650 EDGE WIFI ATX
  • MSI MPG B650 EDGE WIFI ATX

MSI MPG B650 EDGE WIFI ATX

€297.24
Tax included
Warehouse Quantity Price Add to cart
EU01 64 €297.24
EU02 4 €331.28
Add to cart
Warehouse
Quantity



Free delivery on orders above €100



Delivery Times:

  Warehouse CY01: 1-2 working days.

Warehouse EU01: 4-8 working days.

  Warehouse EU02: 4-8 working days.

Warehouse GC: 10-16 working days.

Processor

Installed Qty
0
Max Supported Qty
1

Mainboard

Form Factor
ATX
Compatible Processors
Ryzen
Chipset Type
AMD B650
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC
Supported RAM Speed
5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.)
Processor Socket
Socket AM5
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots

Interfaces

Internal Interfaces
1 x USB-C 3.2 Gen 2 - header, 1 x audio - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header

RAM

Features
AMD EXPO technology, Dual channel memory architecture
Max Supported Size
128 GB

Video Output

Type
Graphics adapter (CPU required)

Audio Output

Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC4080
Audio
High Definition Audio (8-channel)

Networking

Network Controller
Realtek RTL8125BG
Network
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Expansion Slots

Expansion Slots
1 x CPU, 1 x PCIe 4.0 x16 (x2 mode), 3 x M.2 socket (2260/2280 M.2 Key M slot), 4 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x M.2 socket (Key E), 1 x PCIe 4.0 x16

Interfaces

Storage Interfaces
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB-C 3.2 Gen2
Storage Ports
6 x SATA-600 (RAID), 3 x M.2
USB / FireWire Ports Configuration (Active)
1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0

Software

Software Included
AIDA64 Extreme (60 days trial), MSI Center

Dimensions & Weight

Width
30,48 cm
Depth
24,384 cm
MSI
7E10-001R
64 Items

Details

Motherboard Processor Chipset
AMD
Motherboard Processor Socket
Socket AM5
Motherboard RAM Technology
DDR5
Motherboard Form Factor
ATX

Specific References

upc
199833
EAN13
4711377010191
