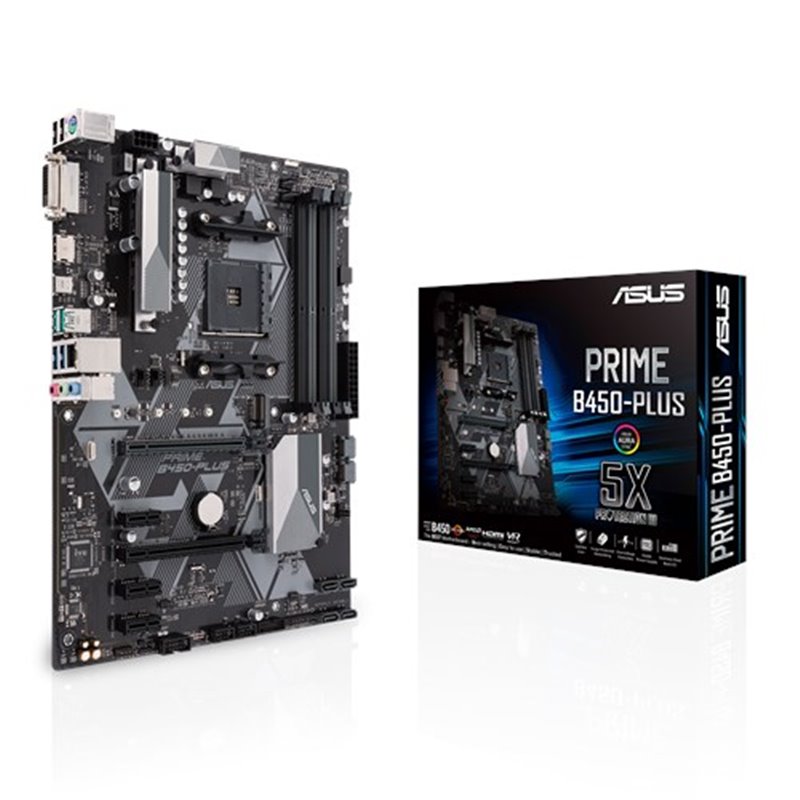

ASUS PRIME B450-PLUS - motherboard - ATX

General

Product Type

Motherboard - ATX

Chipset Type

AMD B450

Processor Socket

Socket AM4

Max Processors Qty

1

Compatible Processors

Ryzen (supports 1st and 2nd Generation Ryzen / Ryzen with Radeon Vega Graphics)

Supported RAM

Max Size

64 GB

Technology

DDR4

Bus Clock

2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.)

Supported RAM Integrity Check

ECC

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture

Audio

Type

HD Audio (8-channel)

Audio Codec

Realtek ALC887-VD2

Compliant Standards

High Definition Audio

LAN

Network Controller

Realtek RTL8111H

Network Interfaces

Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st and 2nd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics)) ¦ 3 x PCIe 2.0 x1 ¦ 1 x PCIe 2.0 x16 (x4 mode)

Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2

Interfaces

1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 2.0 ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 2 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen1

Internal Interfaces

4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, ACPI 6.1 support, SMBIOS 3.1 support

Sleep / Wake Up

Wake on LAN (WOL), wake on PME

Hardware Features

C.P.R. (CPU Parameter Recall), ASUS Q-Design, ESD Guards, Q-DIMM, Q-Slot, CrashFree BIOS 3, 6 Phase Power Design, ASUS DIGI+ VRM, Fanless Design Heatsink, AMD CrossFireX technology support, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot Core, ASUS Fan Xpert 4 Core, AMD StoreMI technology, NVM Express RAID support, ASUS Aura Sync

Miscellaneous

Included Accessories

1 x M.2 screw, I/O back cover

Cables Included

2 x Serial ATA cable

Software Included

Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, PC Cleaner, ASUS EZ Flash 3, File Transfer

Width

30.5 cm

Depth

23.4 cm

Manufacturer Warranty

Service & Support

Limited warranty - 3 years
