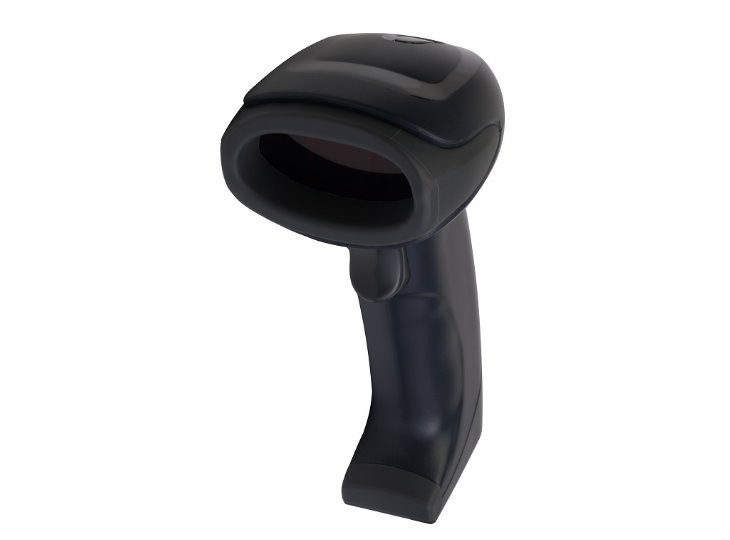

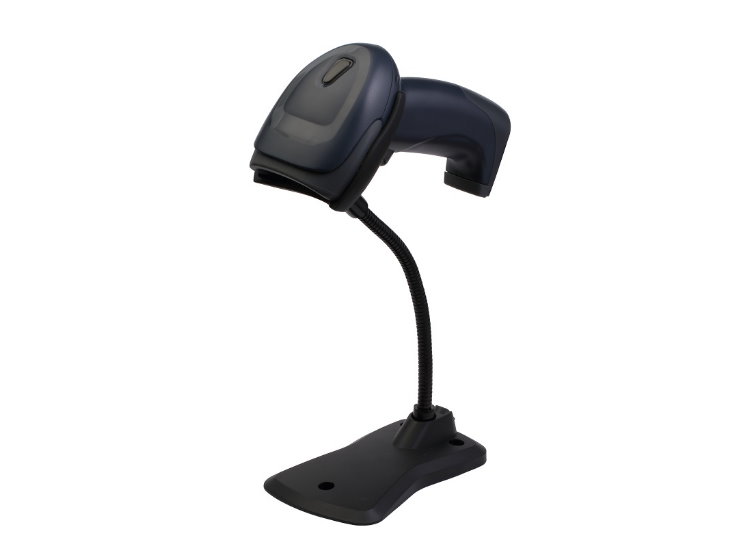

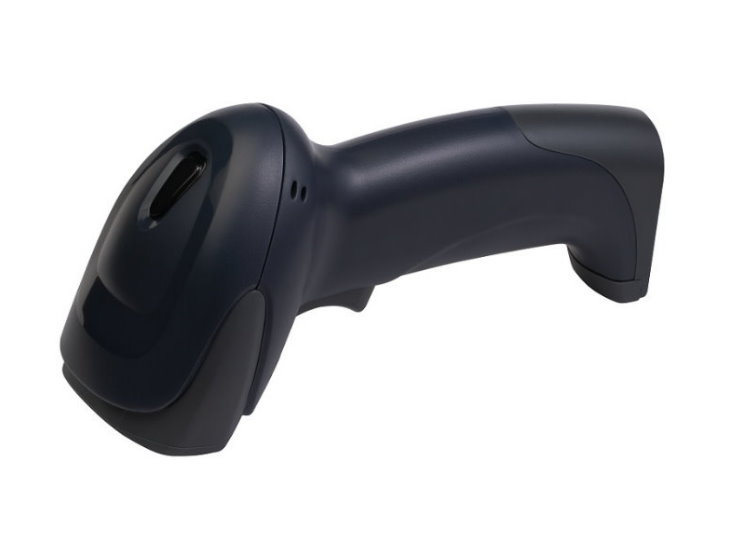

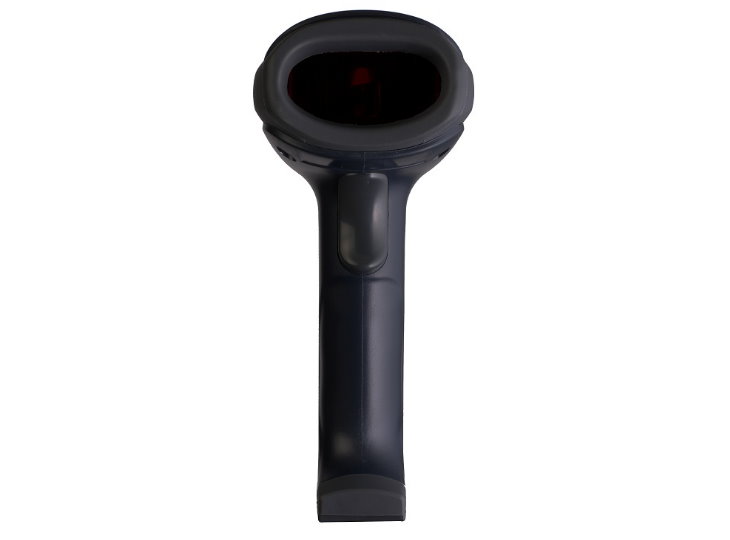

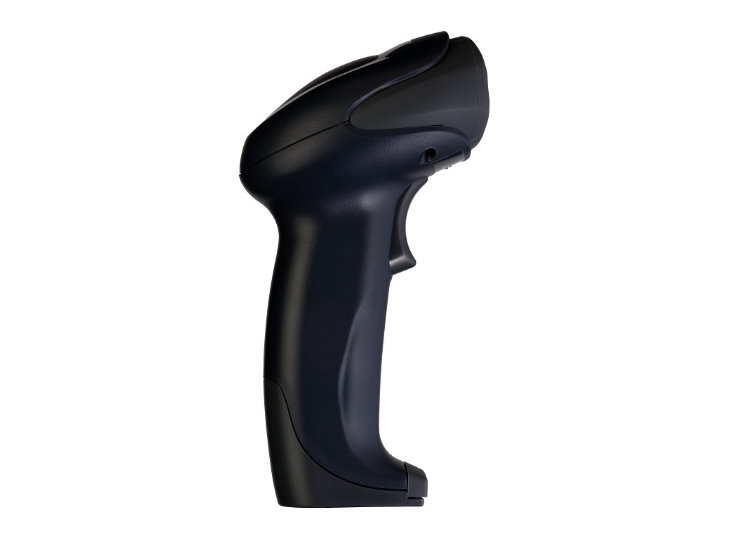

CCD Cabled Barcode Scanner BC-6500

Optical sensor

2500 pixels

Light Source

Red LED (660mm)

Resolution

3 mil

Depth of Field

10 – 390mm

Scan rate

500 scans/sec

PCS

45%

Voltage

+ 5V ± 5%

Scannig currents

110mA

Standby currents

<90 mA

Operating temperature

0 °C to 40 °C / 32 °F to 104 °F

Storage temperature

-40 °C to 70 °C / -40 °F to 158 °F

Operatiing humidity

10% ~95% RH non-condensing at 122 °F/ 50 °C

Storage humidity

10% ~85% RH non-condensing at 158 °F/ 70 °C

Shock resistance

1.5m drops

Weight

180g w/ Cable

Dimensions

85mm (L) x 65mm (W) x 155mm (H)

Housing Material

ABS plastic

Interface

 USB HID / RS-232 / USB-COM

Barcode supported

All UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII, Code32 / Italian Pharmacy, Code 128, CODABAR/NW7, Interleave 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI/PLESSEY, Telepen, Code 93, Code 11, China Postage, GS1 DataBar
