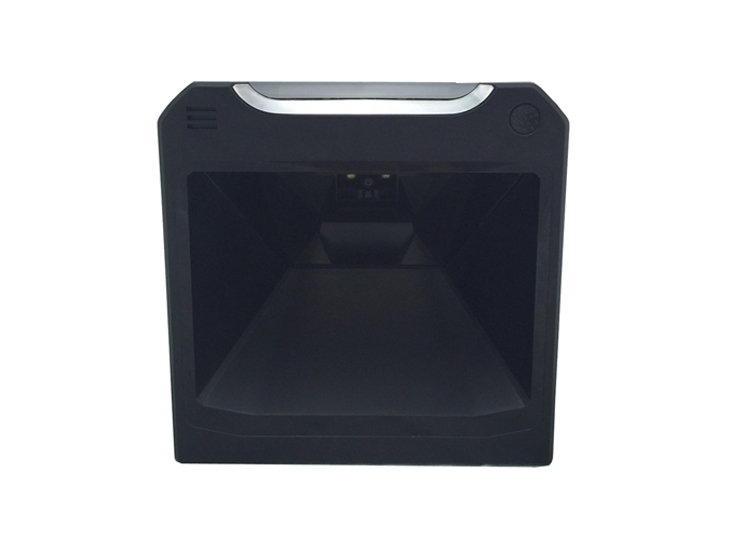

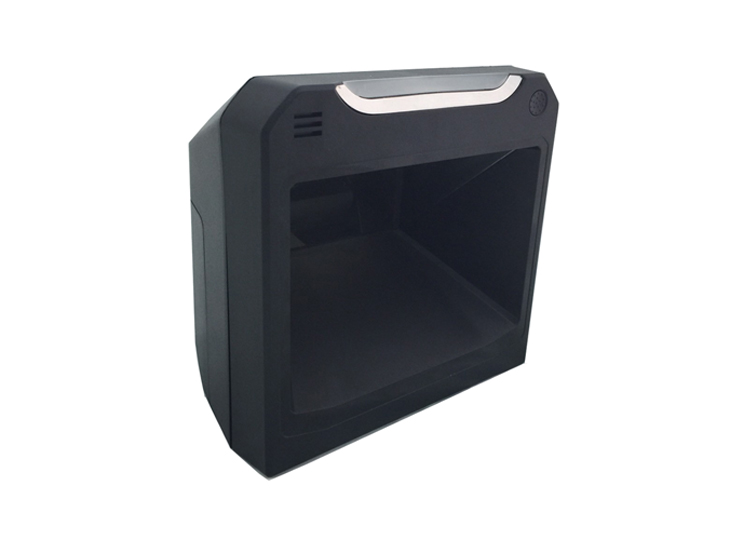

Desktop 2D Barcode Scanner DT-9800
  • Desktop 2D Barcode Scanner DT-9800
  • Desktop 2D Barcode Scanner DT-9800

Desktop 2D Barcode Scanner DT-9800

€253.00
Tax included
Warehouse Quantity Price Add to cart
CY01 2 €253.00
Add to cart
Warehouse
Quantity
Last items in stock



Free delivery on orders above €100



Delivery Times:

  Warehouse CY01: 1-2 working days.

Warehouse EU01: 4-8 working days.

  Warehouse EU02: 4-8 working days.

Warehouse GC: 10-16 working days.

Optical System

752 H x 480 V pixels (Wide VGA)

Light Source

Aiming Pattern: single dot, 625nm LED

Illumination: 630nm LEDs

Ambient Light

Maximum 86, 100Lux (Direct sunlight)

Resolution

4 mil (Code 39), 7.5 mil (Data Matrix), 5 mil (PDF 417)

Focusing Distance

Up to 267mm

Field of View

Horizontal: 46.1º; Vertical: 30.4º

Indicator

LEDs, Speaker

Voltage

DC 5V

Scanning Currents

<260mA

Operating temperature

0 °C to 40 °C (32ºF to 104ºF)

Stroage temperature

-40°C to 70 °C (-40ºF to 158ºF)

Operating humidity

10% ~95% RH non-condensing 122ºF /  50 °C

Storage humidity

10% ~85% RH non-condensing 158ºF /  70 °C

Shock resistance

1.5m drops

Weight

455g (incl. cable weight)

Dimensions

142.6mm (L) x 148.8mm (W) x 97.4mm (H)

Housing Material

PC + ABS plastic

Interface

USB HID / RS-232 / USB-COM



Readable Codes 1D

UPC/EAN/(UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplemental, ISBN, ISSN, Coupon Code), Code 39, Code 39 Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128, (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Codeabar/NW7, Interleaved 2 of 5, Descrete 2 of 5, IATA Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1Databar, (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)

PDF417 (and variants)

PDF417 (Standard, Macro), MicroPDF417 (Standard, Marco), Composite Code (CC-A, CC-B, CC-C)

Readable Codes 2D

MaxiCode, Data Matrix, Data Matrix inverse, QR Code, QR Inverse, Micro QR Code, Aztec Code, Aztec Inverse, Postal Code

Postal

U.S. Posnet and Planet, U.K. Post, Japan Post, Australian Post, Netherlands KIX Code, Royal Mail 4 State Customer, UPU FICS 4 State Postal, USPS 4CB

DT-9800
2 Items

Details

Barcode Scanner Connectivity
USB
Barcode Scanner Sensor
2D
Barcode Scanner Type
Hands-free
