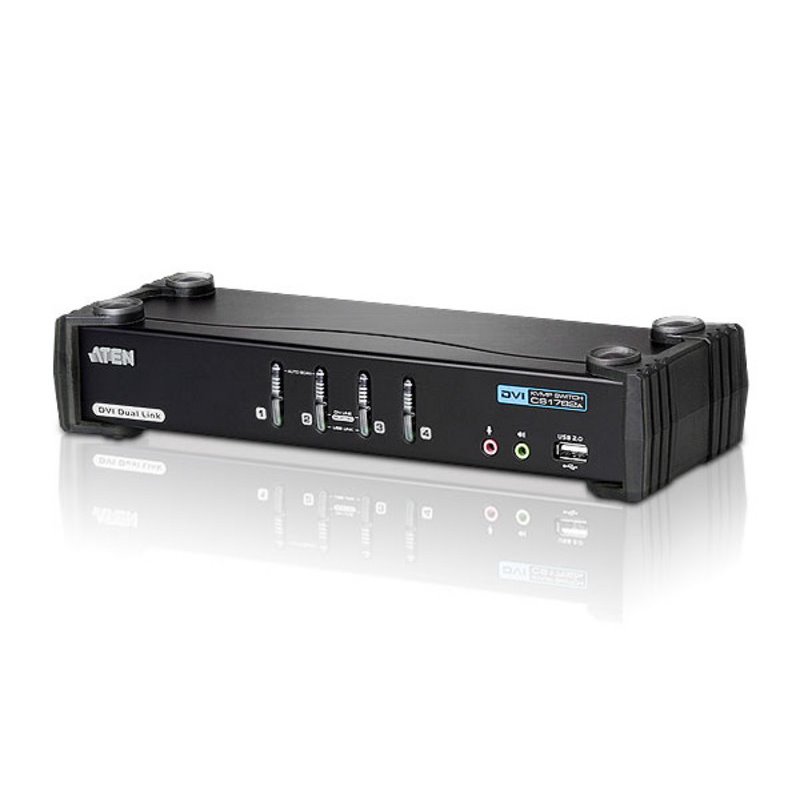

KVM Sw. Aten 4P. USB DVI 3D audio

General

Device Type

KVM / audio / USB switch - 4 ports

Enclosure Type

Desktop

Subtype

KVM

Ports

4 x KVM / audio

KVM Local Users Qty

1 local user

Keyboard / Mouse Interface

USB

Max Resolution

2560 x 1600

Features

Firmware upgradable, built-in 2 port USB 2.0 hub

Built-in Devices

USB Hub

Expansion / Connectivity

Interfaces

1 x keyboard (USB) - Type A ¦ 1 x mouse (USB) - Type A ¦ 1 x DVI-I (dual link) ¦ 2 x audio output - mini-jack ¦ 2 x microphone input - mini-jack ¦ 2 x USB 2.0 - Type B ¦ 4 x DVI-I (dual link) ¦ 4 x audio output - mini-jack ¦ 4 x microphone input - mini-jack ¦ 2 x USB 2.0 - Type A

Power

Power Device

External power adapter

Power Consumption Operational

10 Watt

Miscellaneous

Cables Included

4 x keyboard / mouse / video cable - 1.8 m

Compliant Standards

RoHS

Dimensions & Weight

Width

27 cm

Depth

8.7 cm

Height

5.5 cm

Weight

0.93 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

0 - 80% (non-condensing)

Min Storage Temperature

-20 °C

Max Storage Temperature

60 °C
