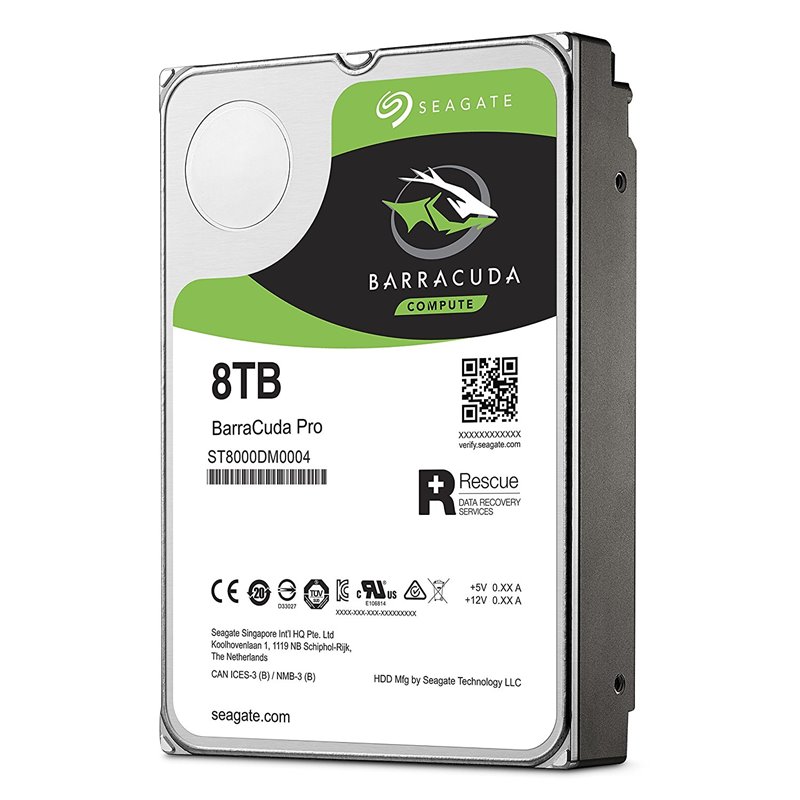

Seagate Barracuda ST8000DM004 hard drive - 8 TB SATA 6Gb/s

General

Device Type

Hard drive - internal

Capacity

8 TB

Interface

SATA 6Gb/s

Buffer Size

256 MB

Bytes per Sector

4096

Features

Native Command Queuing (NCQ), PIO mode 0-4 support, Multi-Word DMA mode 0-2 support, Ultra DMA Mode 0-6 support, Hot-Plug Support, Worldwide Name (WWN), TGMR recording technology, S.M.A.R.T.

Width

101.6 mm

Depth

146.99 mm

Height

26.1 mm

Weight

630 g

Performance

Drive Transfer Rate

600 MBps (external)

Internal Data Rate

190 MBps

Average Latency

6 ms

Reliability

Non-Recoverable Errors

1 per 10^15

Load / Unload Cycles

600,000

Expansion & Connectivity

Interfaces

1 x SATA 6 Gb/s

Power

Power Consumption

5.3 Watt (read) ¦ 3.4 Watt (idle) ¦ 5.3 Watt (write) ¦ 0.25 Watt (standby) ¦ 0.25 Watt (sleep)

Software & System Requirements

Software Included

Seagate SeaTools

Miscellaneous

Compliant Standards

RoHS, China RoHS

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

60 °C

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C

Humidity Range Operating

5 - 90%

Shock Tolerance (operating)

80 g @ 2 ms

Shock Tolerance (non-operating)

300 g @ 2 ms

Vibration Tolerance (operating)

0.5 g @ 22-350 Hz

Vibration Tolerance (non-operating)

3 g @ 22-350 Hz
