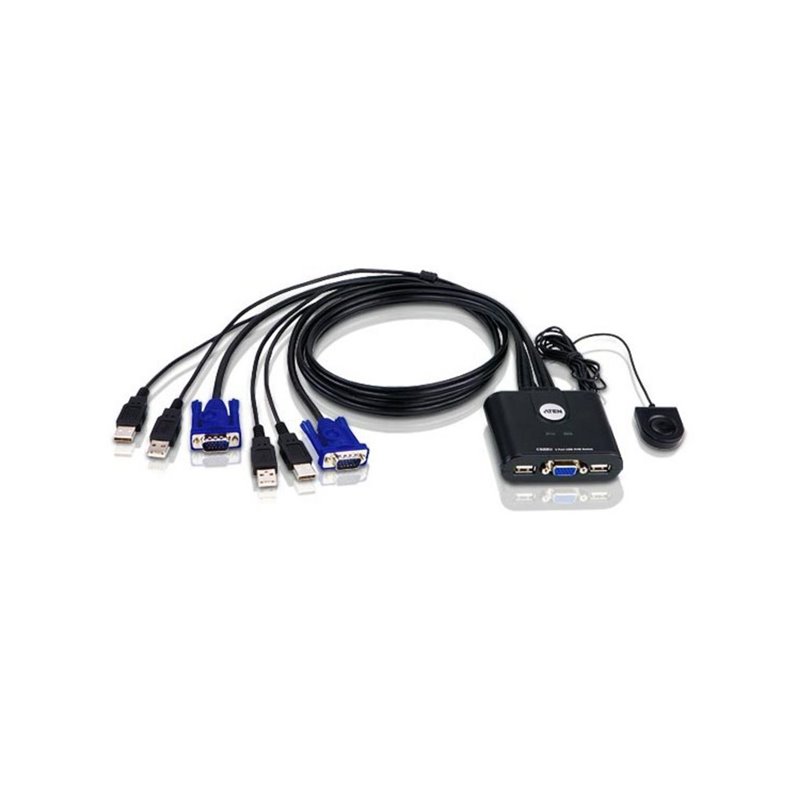

Aten CS22U Black Keyboard/Video/Mouse (KVM) switch

KVM Switch with 2 ports for USB-input devices and VGA graphics
CS2 2U is a KVM switch with 2 USB ports, a fast and simple selection of the connected computer via the port selection switch for the opposite station. You can use the CS2 2U device set up and out of view of the port selection switch for the remote station can be reached at work install.

by its compact design is of CS2 2U ideal for desktop applications that are based on different platforms and high-resolution graphics require.

- A USB console controls two USB Computer
- supports multi-function mice
- Multi-platform compatible with Windows, Mac, Linux, and Sun
- Improved graphics quality resolutions up to 2048 x 1536; DDC2B
- no external power supply required

Connections and Interfaces
number of computers: 2
Keyboard Port Type: USB
Mouse Port Type: USB
Video Port Type: VGA

Video
Maximum resolution: 2048 x 1536 pixel

Design
Rack Installation: no
Product Color: Black
Material: plastic

screen
Built-in display: no

operating conditions
Temperature range in operation: 0 - 50°C
Temperature range during storage: -20 - 60°C
Humidity in operation: 0 - 80%

Weight and dimensions
Width: 82.4 mm
Depth: 77.1 mm
Height: 24.6 mm
Weight: 310 g

Further specifications
number of connections: 2
