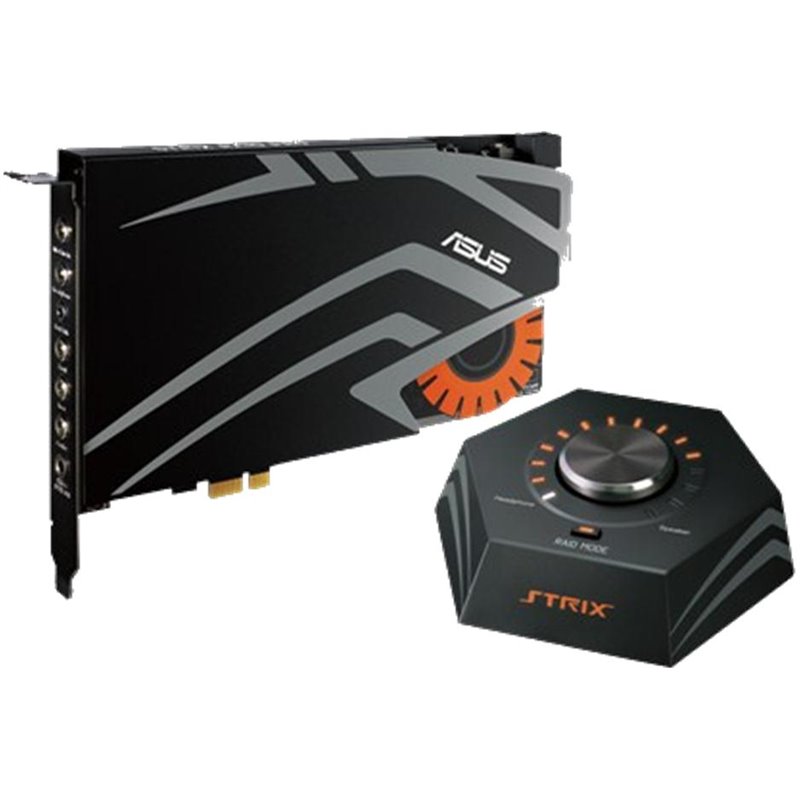

Sou PCIe Asus Strix Raid Pro

General

Device Type

Sound card

Form Factor

Internal

Interface Type

PCI Express

Width

2.2 cm

Depth

19 cm

Height

13 cm

Weight

480 g

Processor / Memory

Signal Processor

CM6632AX

Audio Output

Sound Output Mode

7.1 channel surround

DAC Resolution

24-bit

Sample Rate

44.1 kHz (min) - 192 kHz (max)

Signal-To-Noise Ratio

116 dB

Frequency Response

10 - 48000 Hz

Features

Headphone Amplifier, Hyper Grounding Technology, Sonic Radar Pro, Raid Mode

Compliant Standards

ASIO 2.0

Audio Modes

Record : 24-bit 192 kHz ¦ Playback : 24-bit 192 kHz

Expansion / Connectivity

Interfaces

1 x headphones - mini-phone 3.5mm ¦ 1 x speakers (front surround) - mini-phone 3.5mm ¦ 1 x speakers (center/subwoofer) - mini-phone 3.5mm ¦ 1 x speakers (side)/SPDIF output - mini-phone 3.5mm ¦ 1 x speakers (rear) - mini-phone 3.5mm ¦ 1 x audio line-in/microphone - mini-phone 3.5mm

Miscellaneous

Included Accessories

Control box

Cables Included

1 x S/PDIF optical adapter

Software / System Requirements

Software

Driver, Sonic Studio

OS Required

Microsoft Windows 7 (32/64 bits) SP1, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits)
