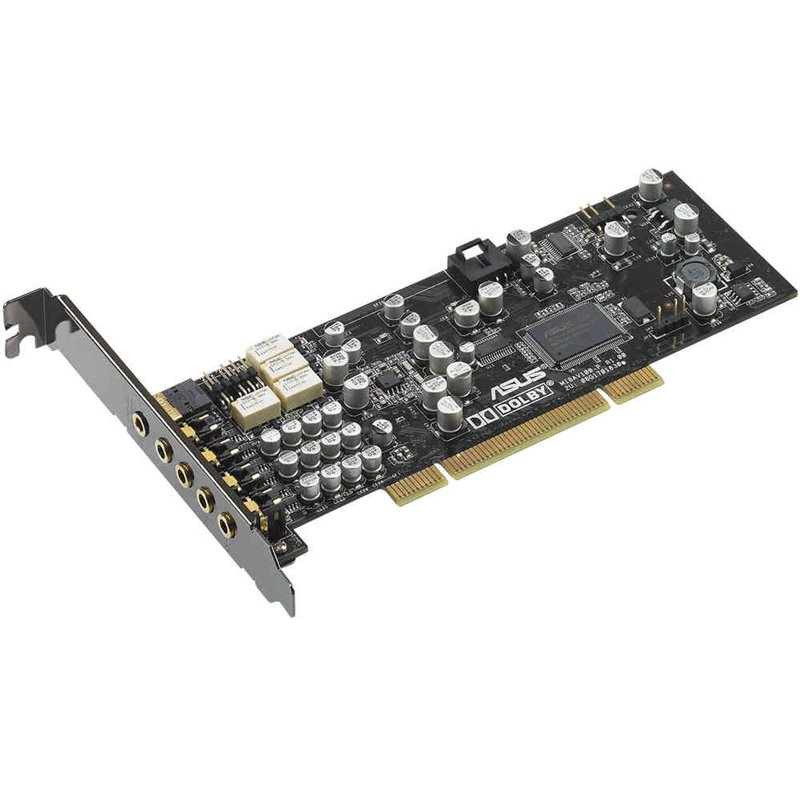

Sou PCI Asus Xonar D1

General

Device Type

Sound card - low profile

Form Factor

Internal

Interface Type

PCI

Depth

16.8 cm

Height

6.4 cm

Processor / Memory

Signal Processor

ASUS AV100

Audio Output

Sound Output Mode

7.1 channel surround

DAC Resolution

24-bit

Sample Rate

192 kHz (max)

Signal-To-Noise Ratio

116 dB

Frequency Response

10 - 48000 Hz

Compliant Standards

DirectSound, DirectSound3D, EAX 2.0, EAX 1.0, Dolby Digital 5.1, A3D 1.0, ASIO 2.0, OpenAL, DirectX, Dolby Digital Live, AC-3 (Dolby Digital), Dolby Pro Logic IIx, DirectSound3D GX 2.0

Audio Modes

Record : 24-bit 192 kHz ¦ Playback : 24-bit 192 kHz

Expansion / Connectivity

Interfaces

1 x audio line-out - mini-phone 3.5mm ¦ 1 x speakers (side surround) - mini-phone 3.5mm ¦ 1 x speakers (center/subwoofer) - mini-phone 3.5mm ¦ 1 x speakers (back surround) - mini-phone 3.5mm ¦ 1 x audio line-in/microphone - mini-phone 3.5mm ¦ 1 x SPDIF output/line-in/microphone - TOSLINK ¦ 1 x audio line-in - 4 PIN MPC

Miscellaneous

Included Accessories

Low-profile bracket

Cables Included

1 x audio (optical) adapter

Software / System Requirements

Software

Drivers & Utilities, RightMark Audio Analyzer 6.0.6

OS Required

Microsoft Windows XP, Microsoft Windows XP 64-bit Edition, Microsoft Windows 7, Microsoft Windows XP Media Center Edition 2005, Microsoft Windows Vista, Microsoft Windows Vista (64-bit versions)

Manufacturer Warranty

Service & Support

3 years warranty

Service & Support Details

Limited warranty - 3 years
