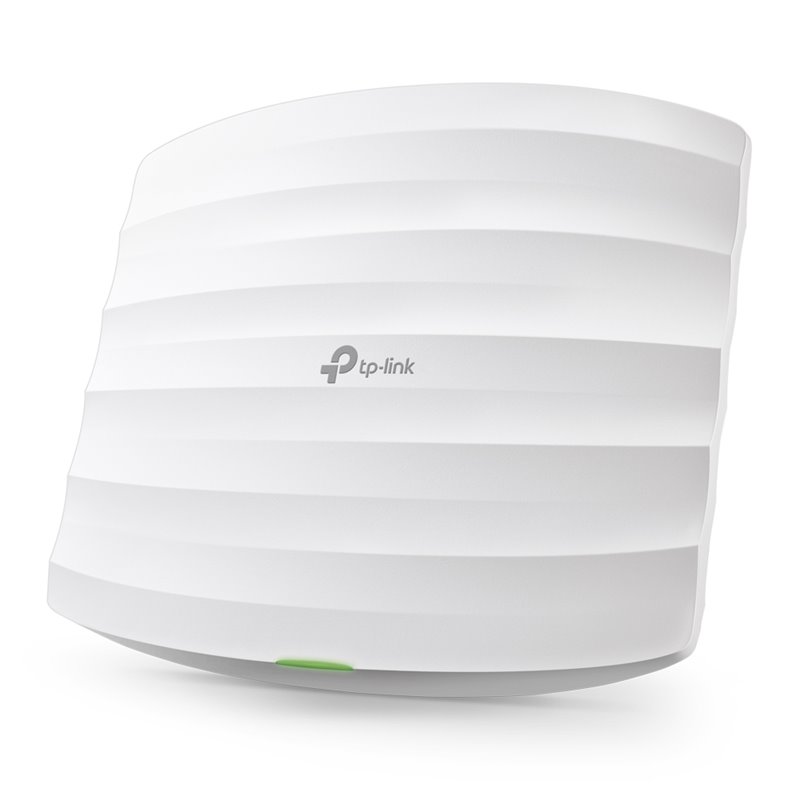

TP-Link Omada EAP115 - radio access point

General

Device Type

Radio access point

Width

18 cm

Depth

18 cm

Height

4.75 cm

Networking

Form Factor

External

Connectivity Technology

Wireless

Data Transfer Rate

300 Mbps

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Remote Management Protocol

SNMP 1, Telnet, SNMP 2c, HTTP, HTTPS

Frequency Band

2.4 GHz

Status Indicators

System

Features

Syslog support, manageable, E-mail alert, MAC address filtering, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Multiple SSID support, reset button, ceiling mountable, security lock slot (cable lock sold separately), Watch Dog Timer (WDT)

Encryption Algorithm

128-bit WEP, 64-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2-PSK, WPA2-Enterprise

Authentication Method

RADIUS

Compliant Standards

IEEE 802.11b, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n

Aerial

Antenna

Internal

Antenna Qty

2

Directivity

Omni-directional

Gain Level

3 dBi

Expansion / Connectivity

Interfaces

1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x management (RS-232) - RJ-45

Miscellaneous

Compliant Standards

FCC, RoHS

Power

Power Over Ethernet (PoE) Supported

PoE

Power Device

External power adapter

Power Consumption Operational

5 Watt

Software / System Requirements

Software Included

Drivers & Utilities

OS Required

Microsoft Windows XP, Microsoft Windows Vista / 7 / 8 / 10

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 90% (non-condensing)
