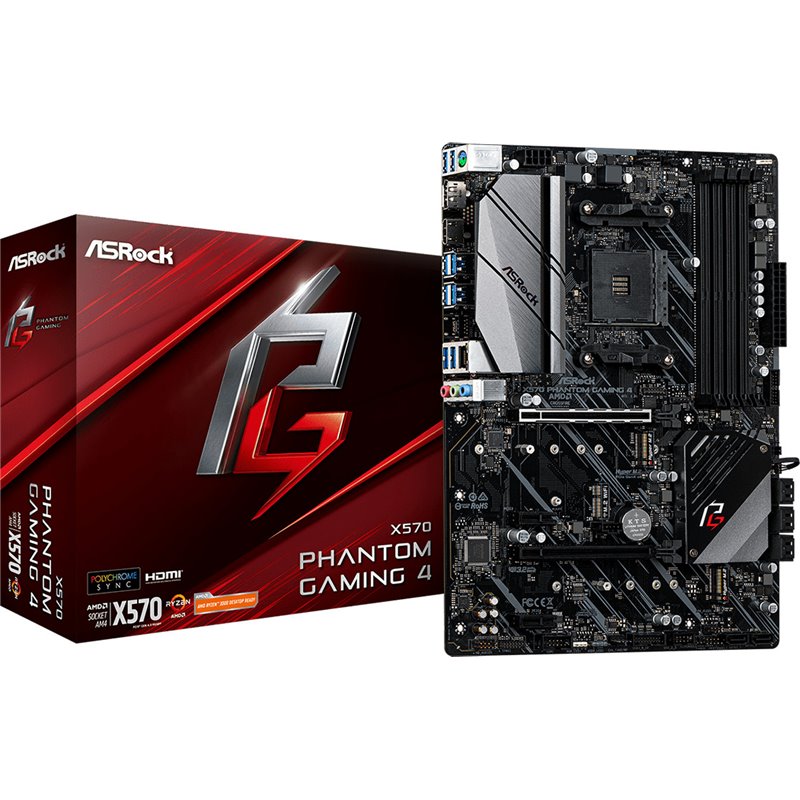

ASRock X570 Phantom Gaming 4 - motherboard - ATX

General

Product Type

Motherboard - ATX

Chipset Type

AMD X570

Processor Socket

Socket AM4

Max Processors Qty

1

Compatible Processors

Ryzen

Supported RAM

Max Size

128 GB

Technology

DDR4

Bus Clock

2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 3200 MHz

Supported RAM Integrity Check

Non-ECC, ECC (operate in non-ECC mode)

Registered or Buffered

Unbuffered

Features

Dual channel memory architecture, supported ECC modules operate in non-ECC mode

Audio

Type

HD Audio (8-channel)

Audio Codec

Realtek ALC1200

Compliant Standards

High Definition Audio, Premium Blu-ray audio support

LAN

Network Controller

Intel I211-AT

Network Interfaces

Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 4.0 x16 (PCIe 4.0 x16/x4 mode (with Ryzen series CPUs Matisse); PCIe 3.0 x16/x4 mode (with Ryzen series CPUs Pinnacle Ridge); PCIe 3.0 x8/x4 mode (with Ryzen series CPUs Picasso)) ¦ 2 x PCIe 4.0 x1 ¦ 1 x M.2 socket (Key E)

Storage Interfaces

SATA-600 -connectors: 8 x 7pin Serial ATA - 8 devices - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - 1 devices ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - 1 devices

Interfaces

2 x USB 3.2 Gen 2 ¦ 6 x USB 3.2 Gen 1 ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse

Internal Interfaces

1 x serial - header ¦ 1 x Thunderbolt - header ¦ 1 x audio - header ¦ 2 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header

Power Connectors

24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type

AMI

BIOS Features

JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support

Hardware Monitoring

CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, power supply fan tachometer

Sleep / Wake Up

Wake on LAN (WOL)

Hardware Features

ASRock Instant Flash, HDCP compliant, 15µ Gold Contact, ASRock XFast LAN, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, XXL Aluminum Alloy Heatsink, ASRock Live Update, 10 Phase Power Design, Premium 50A Power Choke, ASRock Steel Slots, PCB Isolate Shielding, 2oz Copper PCB, ASRock POST Status Checker (PSC)

Miscellaneous

Included Accessories

I/O back plate, 3 x M.2 screws

Cables Included

2 x Serial ATA cable

Software Included

Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock Polychrome SYNC

Compliant Standards

Plug and Play, FCC, EuP Ready, ErP Ready

Width

30.5 cm

Depth

22.9 cm
