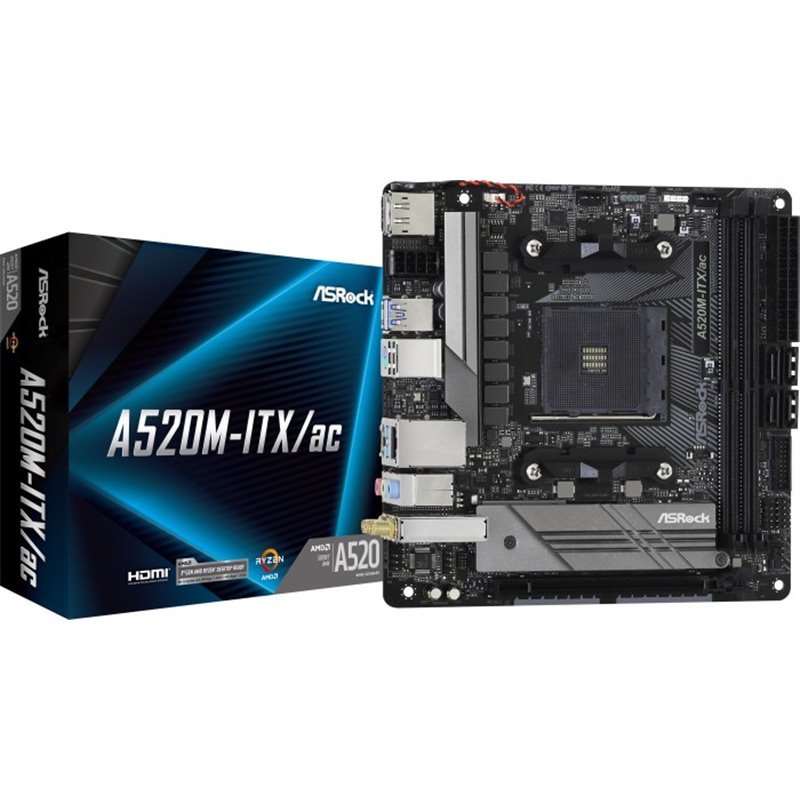

ASRock A520M-ITX/ac - Motherboard - Mini-ITX
  • ASRock A520M-ITX/ac - Motherboard - Mini-ITX
  • ASRock A520M-ITX/ac - Motherboard - Mini-ITX

ASRock A520M-ITX/ac - Motherboard - Mini-ITX

€122.53
Tax included
Warehouse Quantity Price Add to cart
EU01 2 €122.53
EU02 13 €120.63
Add to cart
Warehouse
Quantity
Last items in stock



Free delivery on orders above €100



Delivery Times:

  Warehouse CY01: 1-2 working days.

Warehouse EU01: 4-8 working days.

  Warehouse EU02: 4-8 working days.

Warehouse GC: 10-16 working days.

Motherboard

Form factor
Mini-ITX
Compatible processors
Ryzen
Chipset
AMD A520
Supported RAM technology
DDR4 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC
Supported RAM speed
3200 MHz, 4466 MHz (O.C.), 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 M Hz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.) , 4533 MHz (O.C.)
Processor socket
Socket AM4
Power connections
Main power connector, 24-pin, ATX12V plug, 8-pin
Supported RAM (registered or buffered)
Unbuffered

Interfaces

Internal interfaces
1 x Audio - Pen Bar, 2 x USB 2.0 - Pen, 2 x USB 3.2 Gen 1 - Pen Bar

Ram

Features
Intel Extreme Memory Profiles (XMP), two-channel memory architecture
Max supported size
64 GB

Video

Type
Graphics adapter (CPU required)

Audio

Type
Sound card
Compatibility
High-definition audio
Audio Codec
Realtek ALC887
Audio
High Definition Audio (8-Channel)

Network

Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, Bluetooth 4.2
Network Controllers
Realtek RTL8111H
Network
Bluetooth 4.2, Gigabit Ethernet, 802.11a/b/g/n/ac

Expansion slots

Expansion slots
1 x CPU, 1 x PCIe 3.0 x16, 2 x DIMM 288-pin, 1 x M.2 socket (Key E)

Interfaces

Storage interfaces
SATA-600 -connectors: 4 x 7-pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2
Memory
Serial ATA-600 (RAID), Ultra M.2 socket
Firewire
USB 3.2 Gen 1, USB-C Gen1
Memory slots
4 x SATA-600 (RAID), 1 x Ultra M.2
USB/FireWire port configuration (active)
1 x USB-C Gen 1 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0
USB/FireWire Port Configuration (Header)
2 x USB 3.2 Gen 1 + 2 x USB 2.0

Software

Software incl.
ASRock Polychrome SYNC, ASRock A-Tuning, Antivirus (trial), Drivers & Utilities, Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN

Dimensions and weight

Width
17 cm
Depth
17 cm
Asrock
90-MXBDG0-A0UAYZ
2 Items

Details

Motherboard Processor Chipset
AMD
Motherboard Processor Socket
Socket AM4
Motherboard RAM Technology
DDR4
Motherboard Form Factor
Mini ITX

Specific References

upc
144576
EAN13
4710483932045
