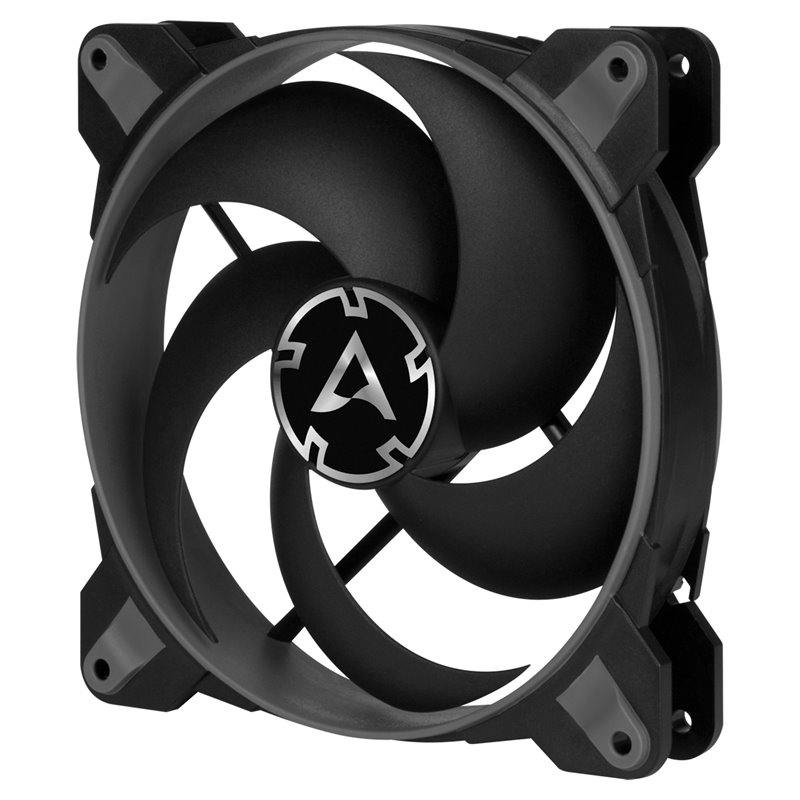

ARCTIC BioniX P140

BioniX P140
Pressure-optimised 140 mm Gaming Fan with PWM PST

The BioniX P140 fan features completely redesigned fan blades and is optimised for high static pressure. Thus, the BioniX P140 is especially effective when used on heatsinks and with higher air resistance.
The wide RPM range from 200 to 1950 RPM can be regulated seamlessly and synchronously with other fans thanks to ARCTIC's PWM Sharing Technology (PST).
The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.

Weight & dimensions
Width	140 mm
Depth	28 mm
Height	140 mm
Weight	181 g
Cable length	0.4 m
Package width	148 mm
Package depth	35 mm
Package height	148 mm
Package weight	230 g
Power
Power consumption (typical)	1.8 W
Voltage	12 V
Rated current	0.15 A
Other features
Mounting hole pattern (W x D)	125 x 125 mm
Packaging content
Package type	Box
Screws included	Y
Number of screws	4
Design
Product colour	Gray
Number of fans	1 fan(s)
Number of fan blades	5
Fan connector	4-pin + 4-pin
Performance
Suitable for	Computer case
Type	Fan
Fan diameter	14 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Rotational speed (min)	200 RPM
Rotational speed (max)	1950 RPM
Noise level	0.45 sone
Maximum airflow	77.6 cfm
Airflow	131.92 m³/h
Maximum air pressure	2.85 mmH2O
Pulse-width modulation (PWM) support	Y
Bearing type	Fluid Dynamic Bearing (FDB)
