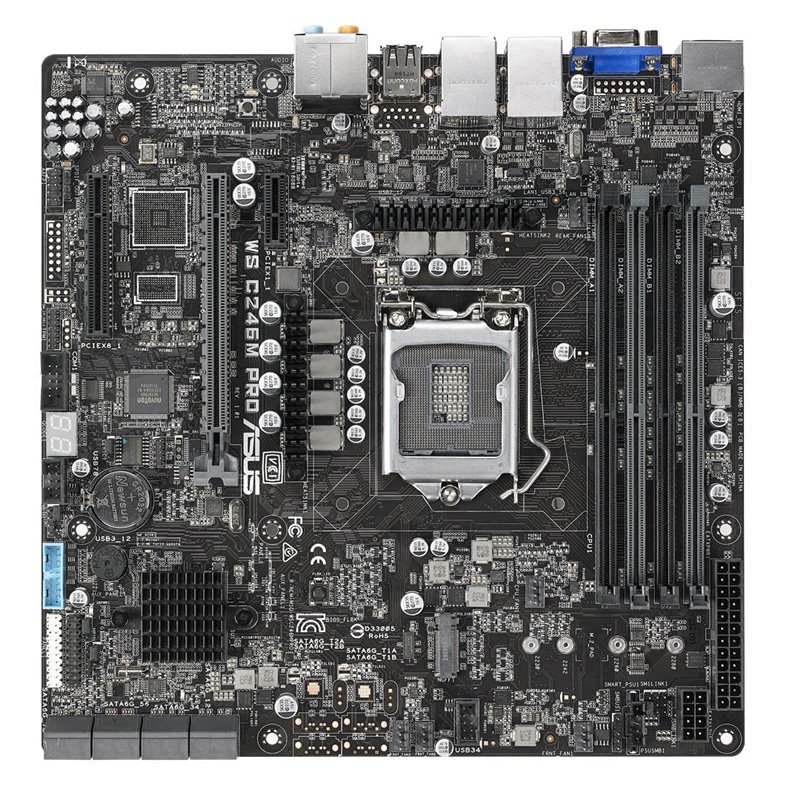

ASUS WS C246M PRO

Rack-optimized design for better cooling efficiency
WS C246M PRO is the perfect workstation motherboard for media server, cloud gaming and video streaming applications. Its rack-optimized layout maximizes cooling efficiency for the best performance and stability, ensuring it's ready to meet the demands of enterprise or academia use.

Powerful performance with Intel® Xeon® E processor and ECC memory
WS C246M PRO supports Intel® Xeon® E series processors to deliver powerful, optimized performance in always-on usage scenarios. Support for Error-Correcting Code (ECC) memory enables automatic detection and repair of single-bit memory errors, reducing the chance of system crashes and data corruption to ensure reliable and responsive workstation performance.

Supports up to three independent displays simultaneously
WS C246M PRO is equipped for total display flexibility with onboard HDMI, DisplayPort and VGA connectivity. With a compatible latest-generation Intel® processor, you can connect up to three independent displays simultaneously for better multitasking and enhanced productivity.

Accelerated data-transfer speeds of up to 32Gbps with M.2
With PCIe 3.0 x4 bandwidth, one M.2 supports up to 32Gbps data-transfer speeds with native NVMe — that's up to 5.3X faster than traditional SSDs. WS C246M PRO also supports the very latest 2.5-inch NVMe SSDs for quick and easy setup.

Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
WS C246M PRO has two onboard USB 3.1 Gen2 connectors that provide data-transfer speeds of up to 10Gbps, twice as fast USB3.1 Gen1.

SafeSlot
ASUS SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance, which protect your graphics card investment. Manufactured in a single step using a new injection-molding process integrates the slot with the fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

ASUS Control Center
WS C246M PRO features ASUS Control Center (ACC), a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

Weight & dimensions
Width	244 mm
Depth	244 mm
Memory
Maximum internal memory	64 GB
Supported memory clock speeds	2133,2400,2666 MHz
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Processor
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel® Pentium®, Intel® Xeon®
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Rear panel I/O ports
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	2
Headphone outputs	1
Microphone in	Y
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
HDMI ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Internal I/O
USB 2.0 connectors	2
Number of COM connectors	1
ATX Power connector (24-pin)	Y
TPM connector	Y
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Network
LAN controller	Intel® I210-AT, Intel I219LM
Ethernet LAN	Y
Expansion slots
PCI Express x1 (Gen 2.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
Packaging content
Cables included	SATA
Manual	Y
Other features
Quick installation guide	Y
Maximum UDIMM memory	64 GB
PCI Express x4 (Gen 3.x) slots	1
Features
Motherboard form factor	Micro ATX
Motherboard chipset	Intel C246
Audio output channels	8.0 channels
Motherboard chipset family	Intel
Component for	PC
