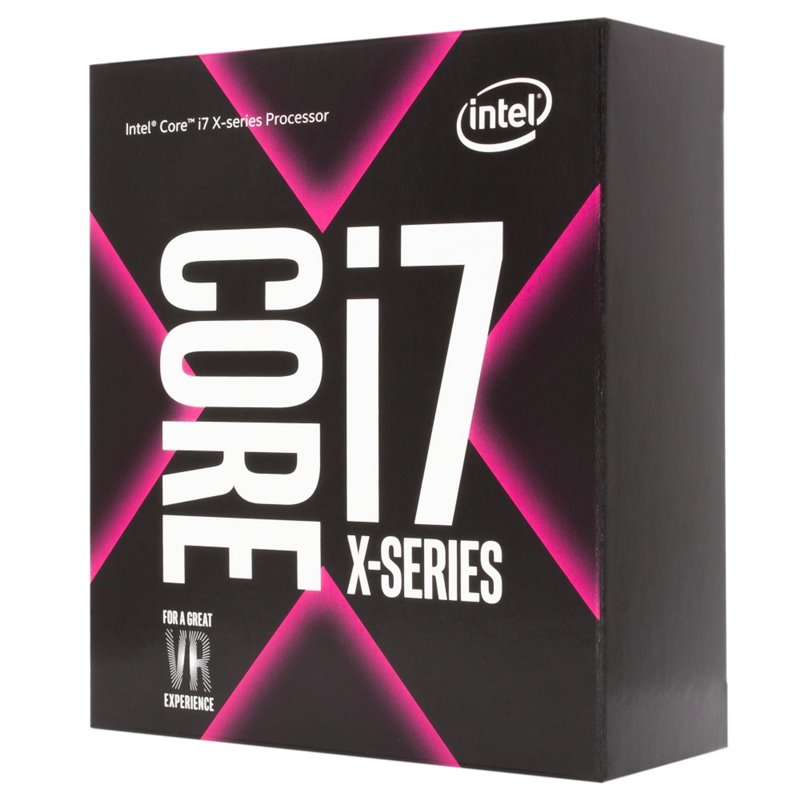

Intel Core i7-7 740X X-series / 4.3GHz processor

Intel® Optane™ storage is a revolutionary new class of non-volatile memory, the between the system memory and the data storage is located in order to increase the performance and speed of response of the system to accelerate. In combination with the Intel® Rapid Storage Technology driver manages it seamlessly multiple storage tiers, with the deployment of a virtual disk for the operating system. This is to ensure that frequently used data on the fastest memory level. Intel® Optane™ memory requires a specific hardware and software configurations. The configuration requirements.

Intel® Turbo Boost Technology dynamically increases the frequency of a processor as required by the temperature and power reserves can be used, if necessary, to more speed and change if more energy efficiency to offer.

With Intel® Virtualization Technology (VT-x), a hardware platform as multiple "virtual" platforms. It offers improved manageability through less downtime and maintain productivity by the computing activities into separate partitions are moved.

processor
Intel Core processor family: X-Series
processor clock frequency: 4.3 GHz
Number of processor cores: 4
processor socket: LGA 2066
Component for: PC
Processor Lithography: 14 Nm
Box: Yes
Cooler included: No
Processor: I7-7 740X
processor threads: 8
System Bus: 8 GT/s
processor operating modes: 64-bit
Processor Cache: 8 MB
Processor Cache Type: Smart Cache
Processor boost frequency: 4.5 GHz
Bus type: DMI3
Processor Code Name: Kaby Lake

Memory
memory channels, supported by the Processor: Dual
maximum internal storage, supported by the processor: 64 GB
Memory types supported by the processor: DDR4-SDRAM
memory clock rates, supported by the processor: 2666 MHz
ECC supported by the processor: no

graphics
Built-in graphics adapter: no

Functions
Thermal Design Power (TDP): 112 W
maximum number of PCI Express lanes: 16
PCI-Express slots-Version: 3.0
PCI Express configuration: 1x16,1x8+ 2x4,2x8
supported command sets: AVX 2.0,SSE4.1,SSE4.2
Scalability: 1S
CPU configuration (max): 1
embedded options are available: No
Specification of the Thermal Solution: PCG 2017X
TIRE PRESSURE MONITOR processor detection: 121499

Processor Features
Intel® Hyper-Threading Technology (Intel® HT Technology): Yes
Intel® Turbo Boost Technology: 2.0
Intel® AES new instructions (Intel® AES-NI): Yes
Intel® 64: Yes
Intel® Virtualization Technology (VT-x): Yes
Intel® Virtualization Technology for Direct I/O (VT-d): Yes
conflict free processor: Yes
Intel® Optane™ memory-ready: YES
Virtual Realtity (VR): Yes

operating conditions
Tjunction: 100°C

Further specifications
RAM memory maximum: 65536 MB
