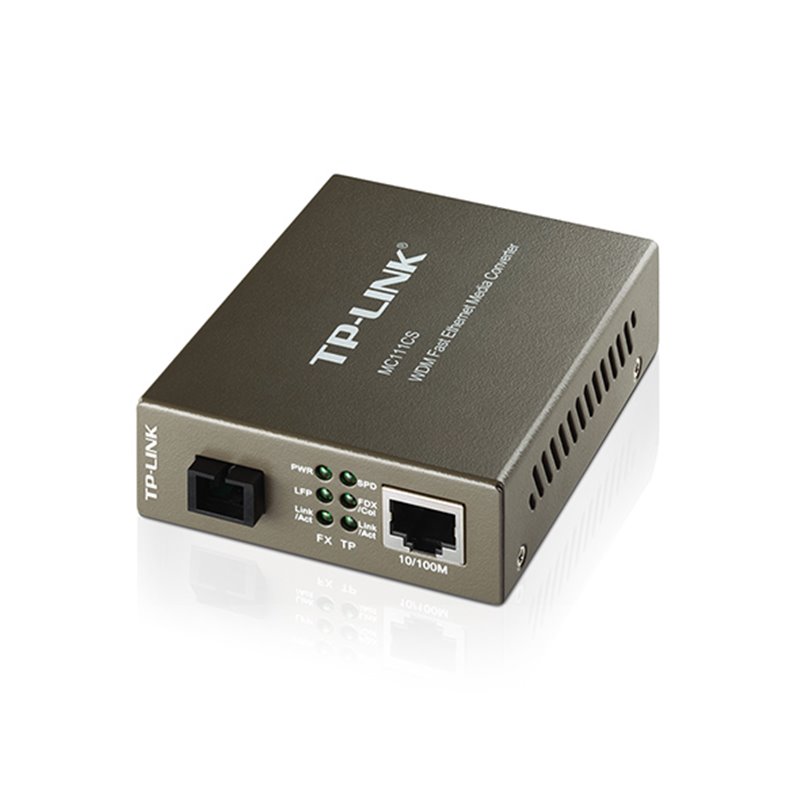

TP-LINK MC111CS - fibre media converter - 10Mb LAN, 100Mb LAN

General

Device Type

Fibre media converter

Form Factor

External

Networking

Connectivity Technology

Wired

Cabling Type

10Base-T, 100Base-FX, 100Base-TX

Data Link Protocol

10Mb LAN, 100Mb LAN

Data Transfer Rate

100 Mbps

Optical Wave Length

1550 (TX) / 1310 (RX) nm

Max Transfer Distance

20 km

Status Indicators

Collision status, port duplex mode, power, link/activity

Features

Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Expansion / Connectivity

Interfaces

1 x Ethernet 10Base-T/100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - SC single-mode

Miscellaneous

Compliant Standards

FCC

Power

Power Device

External power adapter

Dimensions & Weight

Width

9.5 cm

Depth

7.3 cm

Height

2.7 cm

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 90%
