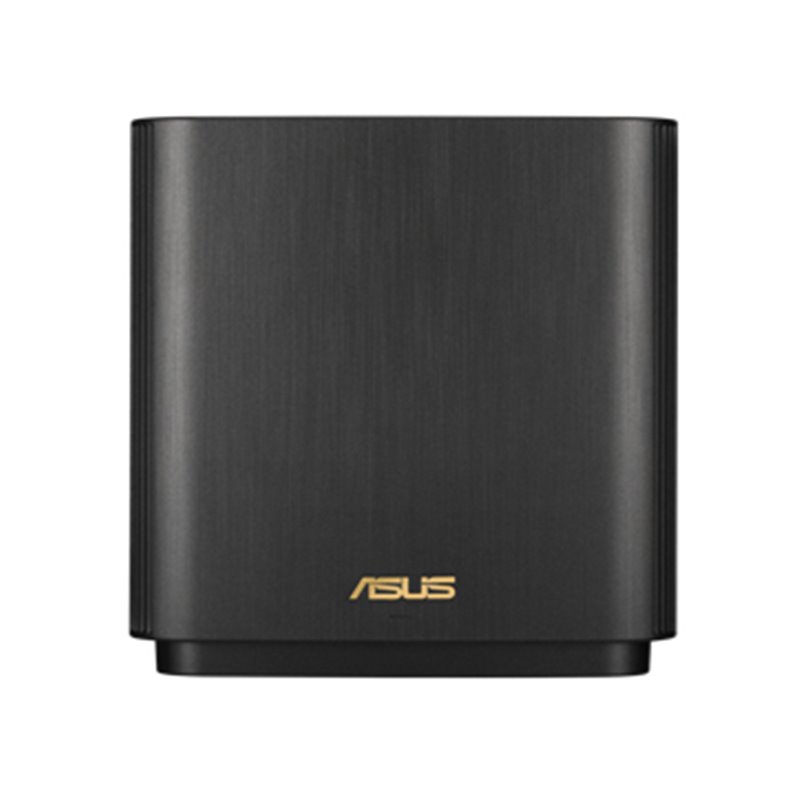

ASUS ZenWiFi AX (XT8) wireless router

Whole-home Coverage
High speed tri-band. Stable WiFi.
The ZenWiFi AX system consists of a pair of ASUS AX6600 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!

Flexible Network Naming
Uniquely, ZenWiFi AX lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!

Make the Internet a
Safer Place for Everyone
AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.

Smart Looks for Smart Homes
ZenWiFi AX works perfectly with smart-home services — including Alexa skills and IFTTT — and is available in black or white to suit your décor.

AiMesh Technology
Easy setup. Flexible management.
Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking

Performance
Through Engineering
ZenWiFi AX features a quad-core CPU to deliver the full performance potential of WiFi 6. Its vertical housing holds a specially designed antenna and circuit board that optimizes WiFi signal strength and provides better airflow, improving thermal performance for reliable operation.
- Special designed vents for increased airflow
- Double heatsink for maximized heat dissipation
- 45° antennas ensure strong WiFi in multi-story homes
- Vertical housing with space between antennas and circuit board for minimal WiFi signal interference
- Quad-core CPU (with WiFi) plus additional WiFi chipset
- 2.5G WAN/LAN port

Wireless LAN features
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	6600 Mbit/s
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Modulation	1024-QAM
Ports & interfaces
Ethernet LAN (RJ-45) ports	3
USB port	Y
Memory card slot(s)	N
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Mobile network
3G	N
4G	N
Network
Ethernet LAN	Y
Ethernet LAN interface type	Gigabit Ethernet
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Ethernet LAN data rates	1000 Mbit/s
Port forwarding	Y
Dynamic DNS (DDNS)	Y
VPN Passthrough	Y
VPN support	IPSec, PPTP, L2TP, PPTP, OpenVPN
Protocols
Universal Plug and Play (UPnP)	Y
Antenna
Antenna type	Internal
Antennas quantity	6
Management features
Web-based management	Y
Quality of Service (QoS) support	Y
Reset button	Y
WPS push button	Y
Security
Security algorithms	WPA-Enterprise,WPA-PSK,WPA2-Enterprise,WPA2-PSK,WPS
Firewall	Y
Guest access	Y
Stateful Packet Inspection (SPI)	Y
DoS attack prevention	Y
Filtering	Y
URL filtering	Y
System event log	Y
DMZ support	Y
Network address translation (NAT)	Y
NAT functionality	PPTP, L2TP, IPSec, RTSP, H.323, SIP, PPPoE
Power
Power source type	AC
AC input voltage	110 - 240 V
AC input frequency	50/60 Hz
Output voltage	19 V
Output current	1.75 A
Weight & dimensions
Width	160 mm
Depth	75 mm
Height	161.5 mm
Weight	716 g
System requirements
Windows operating systems supported	Windows 10,Windows 7,Windows 8
Mac operating systems supported	Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion
Design
Product type	Tabletop router
Product colour	Black
On/off switch	Y
Features
Built-in processor	Y
Processor frequency	1500 MHz
Processor cores	4
Internal memory	512 MB
Flash memory	256 MB
WAN connection
Ethernet WAN	Y
DSL WAN	N
SIM card slot	N
WAN connection type	RJ-45
Packaging data
Number of products included	1 pc(s)
