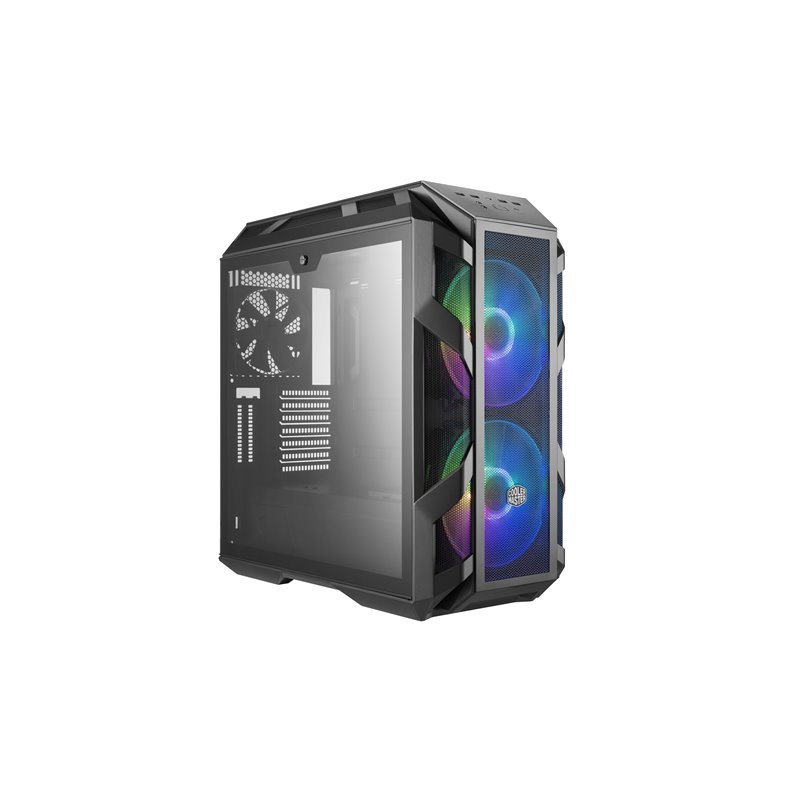

Cooler Master MasterCase H500M - mid tower RGB

General

Form Factor

Mid tower

Max Mainboard Size

Extended ATX

Supported Motherboards

ATX, microATX, Mini-ITX, Extended ATX

Specification Compliance

ATX / PS/2

Internal Bays Qty

8

Product Material

Steel, tempered glass

Colour

Iron grey

Cooling System

Front: 200 mm fan x 2 / 800 rpm / RGB fan ¦ Rear: 140 mm fan x 1 / 1200 rpm ¦ Top: 120 mm fan mount x 3 / 2 x 140/200 mm fan supported

CPU Cooler Max Height

190 mm

Video Card Max Length

412 mm

Power Supply Max Length

200 mm

System Cabinet Features

Tempered glass side panel, supports 120/140 mm radiator in rear, tempered glass front panel, tempered glass top panel, supports up to 360 mm radiator in front panel, supports up to 360 mm radiator in top panel, RGB lighting system

Expansion / Connectivity

Expansion Bays

2 (total) / 2 (free) x internal - 2.5" / 3.5" shared ¦ 6 (total) / 6 (free) x internal - 2.5"

Expansion Slots

7

Interfaces

4 x USB 3.0 ¦ 1 x USB 3.1 - USB-C ¦ 1 x headphones - mini-jack ¦ 1 x microphone - mini-jack

Power

Power Device

No power supply

Dimensions & Weight

Width

24.8 cm

Depth

54.4 cm

Height

54.6 cm

Manufacturer Warranty

Service & Support

Limited warranty - parts and labour - 1 year
