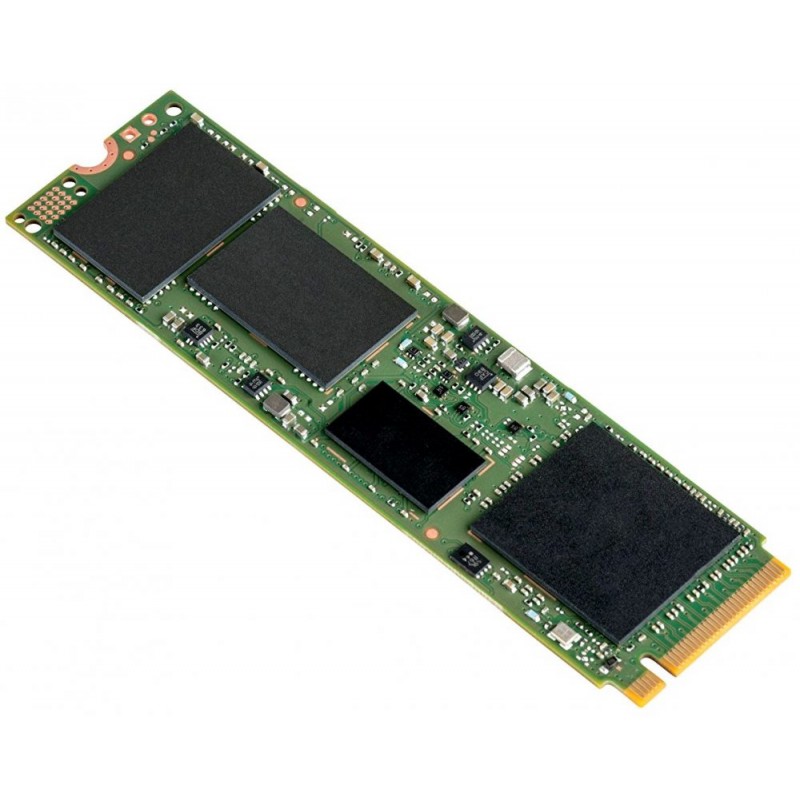

Intel Solid-State Drive 600p Series - solid state drive - 512 GB - PCI Express 3.0 x4 (NVMe)

General

Device Type

Solid state drive - internal

Capacity

512 GB

Hardware Encryption

Yes

Encryption Algorithm

256-bit AES

NAND Flash Memory Type

Triple-level cell (TLC)

Form Factor

M.2 2280

Interface

PCI Express 3.0 x4 (NVMe)

Features

Smart Response Technology, Rapid Start Technology

Width

3.5 mm

Depth

80 mm

Height

22 mm

Weight

40 g

Performance

SSD Endurance

72 TB

Internal Data Rate

1775 MBps (read) / 560 MBps (write)

4KB Random Read

128500 IOPS

4KB Random Write

128000 IOPS

Reliability

MTBF

1,600,000 hours

Non-Recoverable Errors

1 per 10^15

Expansion & Connectivity

Interfaces

1 x PCI Express 3.0 x4 (NVMe)

Compatible Bay

M.2 2280

Power

Power Consumption

100 mW (active) ¦ 40 mW (idle)

Miscellaneous

Compliant Standards

RoHS

Manufacturer Warranty

Service & Support

Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C

Vibration Tolerance (operating)

2.17 g @ 5-700 Hz

Vibration Tolerance (non-operating)

3.13 g @ 5-800 Hz
