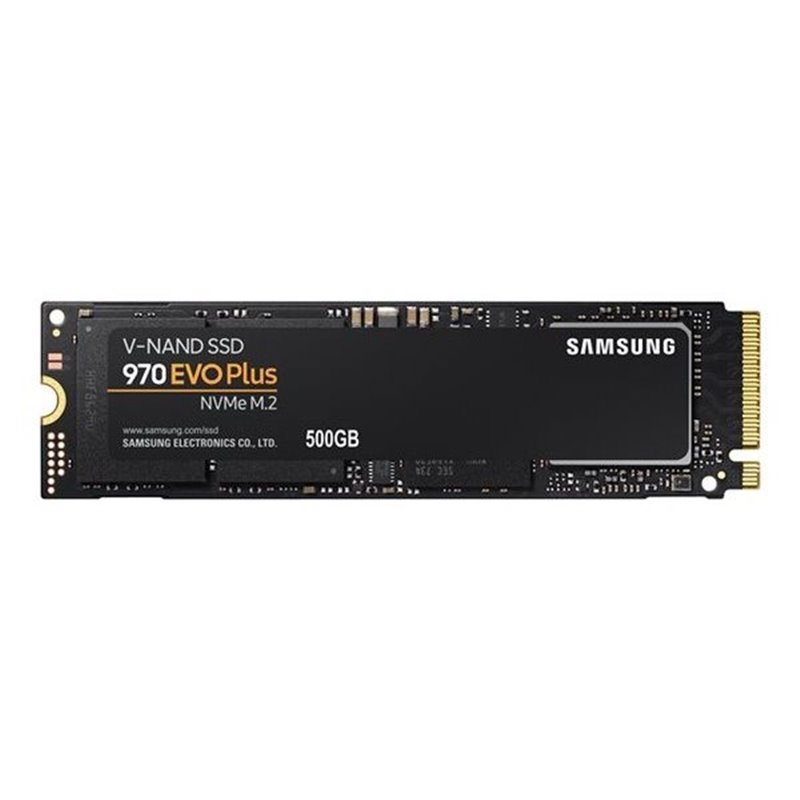

Samsung 970 EVO Plus MZ-V75S500BW - solid state drive - 500 GB - PCI Express 3.0 x4 (NVMe)

General

Device Type

Solid state drive - internal

Capacity

500 GB

Hardware Encryption

Yes

Encryption Algorithm

256-bit AES

NAND Flash Memory Type

Triple-level cell (TLC)

Form Factor

M.2 2280

Interface

PCI Express 3.0 x4 (NVMe)

Buffer Size

512 MB

Features

TRIM support, sleep mode, Auto Garbage Collection Algorithm, V-NAND Technology, NVM Express (NVMe) 1.3, Samsung Phoenix Controller, S.M.A.R.T.

Width

22.15 mm

Depth

80.15 mm

Height

2.38 mm

Weight

8 g

Performance

SSD Endurance

300 TB

Internal Data Rate

3500 MBps (read) / 3200 MBps (write)

4KB Random Read

19000 IOPS

4KB Random Write

60000 IOPS

Maximum 4KB Random Write

550000 IOPS

Maximum 4KB Random Read

480000 IOPS

Reliability

MTBF

1,500,000 hours

Expansion & Connectivity

Interfaces

PCI Express 3.0 x4 (NVMe) - M.2 Card

Compatible Bay

M.2 2280

Power

Power Consumption

5.8 Watt (average) ¦ 9 Watt (maximum) ¦ 30 mW (idle max)

Miscellaneous

Compliant Standards

IEEE 1667

Manufacturer Warranty

Service & Support

Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C

Shock Tolerance (operating)

1500 g @ 0.5 ms half-sine
